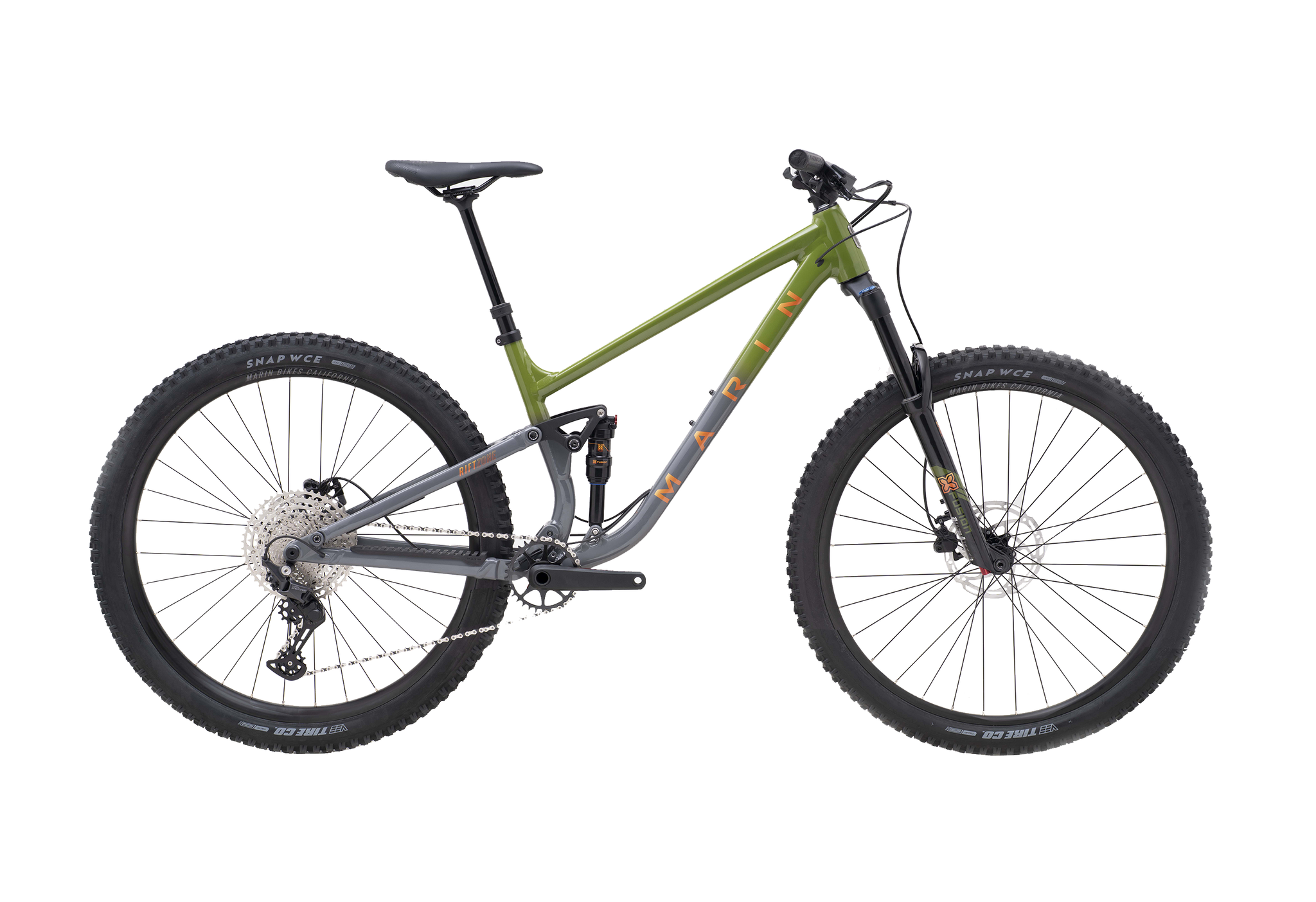

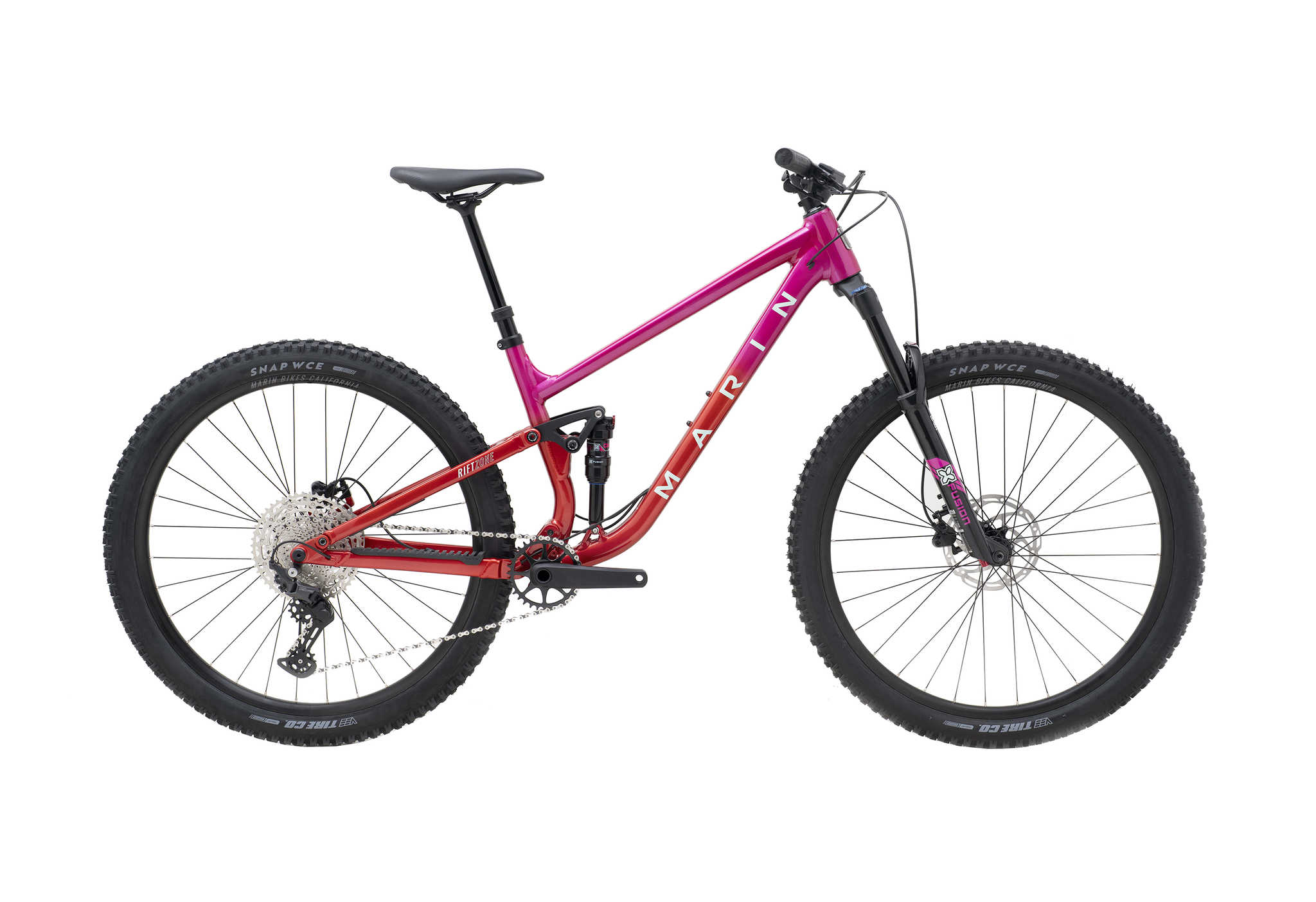

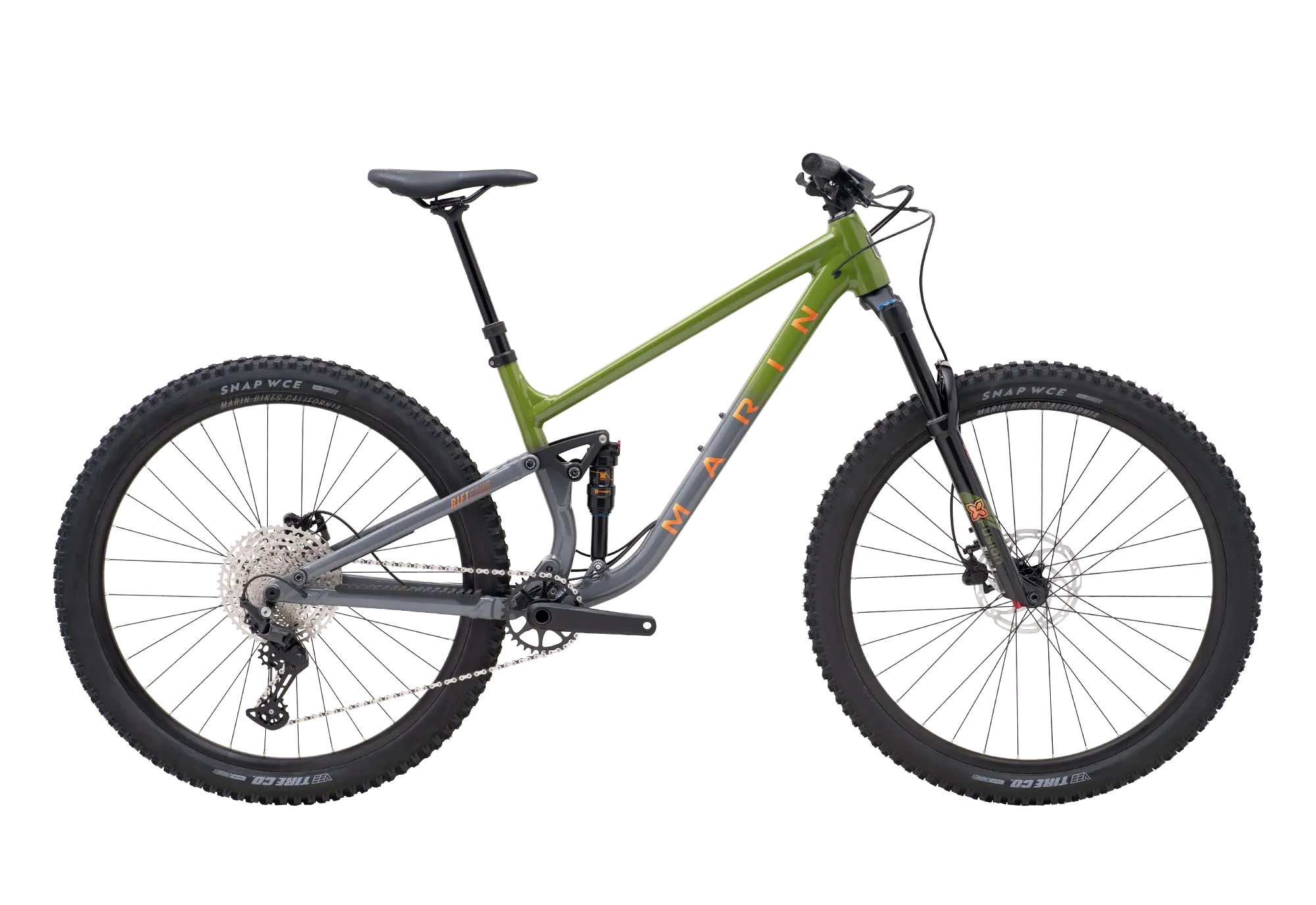

The Rift Zone features 130mm of rear travel, a lightweight aluminum frame and our super-plush MultiTrac suspension platform for endless good times on the trails. Available with either 27.5" or 29" wheels, depending on frame size, ensuring the perfect balance of playfulness and efficiency.

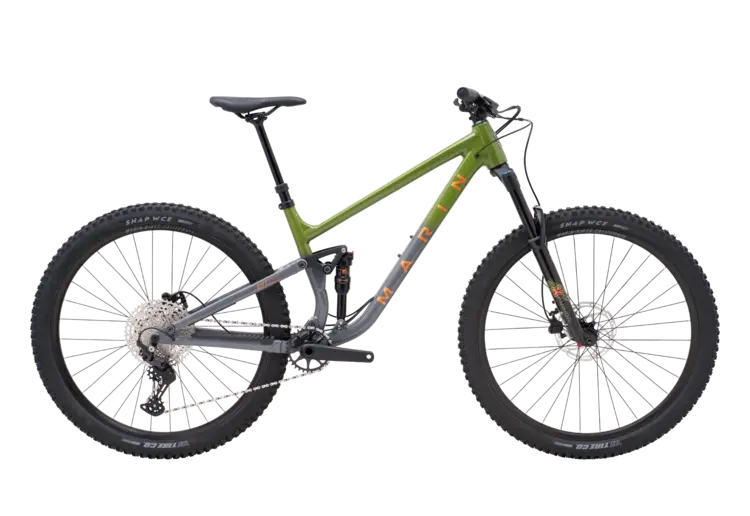

The Marin Rift Zone 1 is your gateway to the Rifty family, made to push the limits of your riding but not your bank balance. It's built with super reliable X-Fusion suspension, an X-Fusion Manic dropper post, grippy Vee Crown Gem tires, plenty of Shimano and a hand-picked selection of our favorite Marin components.
Fork
X-Fusion Slide Boost RC, 29", 140mm Travel, Compression and Rebound Adjustment, 44mm Offset
Frame
Series 3 6061 Aluminum Frame, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
Rear Suspension
X-Fusion O2 Pro R, Custom Tune, 210x50mm, M8x25mm Hardware Top and Bottom
Rim
Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
Hub Rear
Shimano HB-MT200B, 141 QR, Centerlock, Standard Freehub Body
Hub Front
Shimano HF-MT400B, 110x15mm, Centerlock
Spokes
14g Black Stainless Steel
Tires
Vee Tire Crown Gem 29x2.35", Dual Control Compound, Tubeless Ready
Derailleur Rear
Shimano Deore, 11-Speed, SGS
Shift Lever
Shimano Deore, 11-Speed, SL-5100R
Crankset
Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing
Bottom Bracket
External Sealed Cartridge Bearing
Chain
KMC X-11 Silver and Black
Cassette
Sunrace, 11-Speed, 11-51T, ED Black
Brakes Front
Shimano BR-MT200 Hydraulic Disc, 180mm Rotor
Brakes Rear
Shimano BR-MT200 Hydraulic Disc, 180mm Rotor
Brake Levers
Shimano BL-MT201
Handlebar
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Stem
Marin 3D Forged Alloy, 35mm
Grips
Marin MTN, Closed End
Headset
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seatpost
Marin Alloy, 30.9mm
Saddle
Marin Speed Concept
Extras
Thru-Axle Bolt On System
